Fractions in Disguise

Figure It Out — Questions & Solutions

Think first. Use AI purposefully. Verify always.

Choose Try It Yourself to develop your reasoning, or View Solution to read the complete solution straight away.

Figure It Out · page 3 · Question 1

Printed page 3

Express the following fractions as percentages.

(i) 35

(ii) 714

(iii) 920

(iv) 72150

(v) 13

(vi) 511

Figure It Out · page 3 · Question 2

Printed page 3

Nandini has 25 marbles, of which 15 are white. What percentage of her marbles are white?

(i) 10%

(ii) 15%

(iii) 25%

(iv) 60%

(v) 40%

(vi) None of these

Figure It Out · page 4 · Question 3

Printed page 4

In a school, 15 of the 80 students come to school by walking. What percentage of the students come by walking?

Figure It Out · page 4 · Question 4

Printed page 4

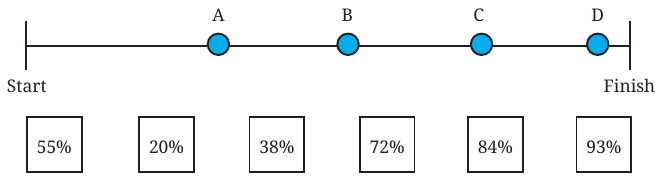

A group of friends is participating in a long-distance run. The positions of each of them after 15 minutes are shown in the following picture. Match (among the given options) what percentage of the race each of them has approximately completed.

Options: 55%, 20%, 38%, 72%, 84%, 93%.

Runner positions A, B, C, D between start and finish. Choices: 55%, 20%, 38%, 72%, 84%, 93%.
Page 4 · Question 4 · NCERT, supplied chapter source. Numerical and figure qualifications are stated in the solution.

Figure It Out · page 4 · Question 5

Printed page 4

Pairs of quantities are shown below. Identify and write appropriate symbols ‘>’, ‘<’, ‘=’ in the blanks. Try to do it without calculations.

(i) 50% ____ 5%

(ii) 510 ____ 50%

(iii) 311 ____ 61%

(iv) 30% ____ 13

Figure It Out · page 12 · Question 1

Printed page 12

Estimate first before making any computations to solve the following questions. Try different methods including mental computations.

Find the missing numbers. The first problem has been worked out.

Use the three source bar models below; part

(iii) continues on page 13.

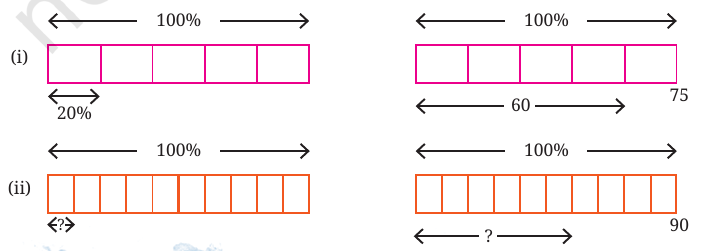

Bar models (i) and (ii), each with a percentage bar and quantity bar. The first is the textbook worked example; the second has blanks.
Page 12 · Question 1 (i)–(ii) · NCERT, supplied chapter source. Numerical and figure qualifications are stated in the solution.

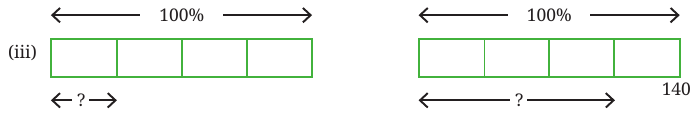

Part (iii): four equal intervals represent 100%; the whole quantity is 140 and the span of three intervals is unknown.
Page 13 · Question 1 (iii), continued · NCERT, supplied chapter source. Numerical and figure qualifications are stated in the solution.

Figure It Out · page 13 · Question 2

Printed page 13

Find the value of the following and also draw their bar models.

(i) 25% of 160

(ii) 16% of 250

(iii) 62% of 360

(iv) 140% of 40

(v) 1% of 1 hour

(vi) 7% of 10 kg

Figure It Out · page 13 · Question 3

Printed page 13

Surya made 60 ml of deep orange paint, how much red paint did he use if red paint made up 34 of the deep orange paint?

Figure It Out · page 13 · Question 4

Printed page 13

Pairs of quantities are shown below. Identify and write appropriate symbols ‘>’, ‘<’, ‘=’ in the boxes. Visualising or estimating can help. Compute only if necessary or for verification.

(i) 50% of 510 □ 50% of 515

(ii) 37% of 148 □ 73% of 148

(iii) 29% of 43 □ 92% of 110

(iv) 30% of 40 □ 40% of 50

(v) 45% of 200 □ 10% of 490

(vi) 30% of 80 □ 24% of 64

Figure It Out · page 13 · Question 5

Printed page 13

Fill in the blanks appropriately:

(i) 30% of k is 70, 60% of k is _____, 90% of k is _____, 120% of k is ______.

(ii) 100% of m is 215, 10% of m is _____, 1% of m is ______, 6% of m is ______.

(iii) 90% of n is 270, 9% of n is ______, 18% of n is _____, 100% of n is ______.

(iv) Make 2 more such questions and challenge your peers.

Figure It Out · page 13 · Question 6

Printed page 13

Fill in the blanks:

(i) 3 is ____ % of 300.

(ii) _____ is 40% of 4.

(iii) 40 is 80% of _____.

Figure It Out · page 13 · Question 7

Printed page 13

Is 10% of a day longer than 1% of a week? Create such questions and challenge your peers.

Figure It Out · page 13 · Question 8

Printed page 13

Mariam’s farm has a peculiar bull. One day she gave the bull 2 units of fodder and the bull ate 1 unit. The next day, she gave the bull 3 units of fodder and the bull ate 2 units. The day after, she gave the bull 4 units and the bull ate 3 units. This continued, and on the 99th day she gave the bull 100 units and the bull ate 99 units. Represent these quantities as percentages. This task can be distributed among the class. What do you observe?

Figure It Out · page 14 · Question 9

Printed page 14

Workers in a coffee plantation take 18 days to pick coffee berries in 20% of the plantation. How many days will they take to complete the picking work for the entire plantation, assuming the rate of work stays the same? Why is this assumption necessary?

Figure It Out · page 14 · Question 10

Printed page 14

The badminton coach has planned the training sessions such that the ratio of warm up : play : cool down is 10% : 80% : 10%. If he wants to conduct a training of 90 minutes. How long should each activity be done?

Figure It Out · page 14 · Question 11

Printed page 14

An estimated 90% of the world’s population lives in the Northern Hemisphere. Find the (approximate) number of people living in the Northern Hemisphere based on this year’s worldwide population.

Figure It Out · page 14 · Question 12

Printed page 14

A recipe for the dish, halwa, for 4 people has the following ingredients in the given proportions — Rava: 40%, Sugar: 40%, and Ghee: 20%.

(i) If you want to make halwa for 8 people, what is the proportion of each of the above ingredients?

(ii) If the total weight of the ingredients is 2 kg, how much rava, sugar and ghee are present?

Figure It Out · page 19 · Question 1

Printed page 19

If a shopkeeper buys a geometry box for ₹75 and sells it for ₹110, what is his profit margin with respect to the cost?

Figure It Out · page 19 · Question 2

Printed page 19

I am a carpenter and I make chairs. The cost of materials for a chair is ₹475 and I want to have a profit margin of 50%. At what price should I sell a chair?

Figure It Out · page 19 · Question 3

Printed page 19

The total sales of a company (also called revenue) was ₹2.5 crore last year. They had a healthy profit margin of 25%. What was the total expenditure (costs) of the company last year?

Figure It Out · page 19 · Question 4

Printed page 19

A clothing shop offers a 25% discount on all shirts. If the original price of a shirt is ₹300, how much will Anwar have to pay to buy this shirt?

Figure It Out · page 19 · Question 5

Printed page 19

The petrol price in 2015 was ₹60 and ₹100 in 2025. What is the percentage increase in the price of petrol?

(i) 50%

(ii) 40%

(iii) 60%

(iv) 66.66%

(v) 140%

(vi) 160.66%

Figure It Out · page 20 · Question 3

Printed page 20

Samson bought a car for ₹4,40,000 after getting a 15% discount from the car dealer. What was the original price of the car?

Figure It Out · page 20 · Question 4

Printed page 20

1600 people voted in an election and the winner got 500 votes. What percent of the total votes did the winner get? Can you guess the minimum number of candidates who stood for the election?

Figure It Out · page 20 · Question 5

Printed page 20

The price of 1 kg of rice was ₹38 in 2024. It is ₹42 in 2025. What is the rate of inflation? (Inflation is the percentage increase in prices.)

Figure It Out · page 20 · Question 6

Printed page 20

A number increased by 20% becomes 90. What is the number?

Figure It Out · page 20 · Question 7

Printed page 20

A milkman sold two buffaloes for ₹80,000 each. On one of them, he made a profit of 5% and on the other a loss of 10%. Find his overall profit or loss.

Figure It Out · page 20 · Question 8

Printed page 20

The population of elephants in a national park increased by 5% in the last decade. If the population of the elephants last decade is p, the population now is

(i) p × 0.5

(ii) p × 0.05

(iii) p × 1.5

(iv) p × 1.05

(v) p + 1.50

Figure It Out · page 20 · Question 9

Printed page 20

Which of the following statement(s) mean the same as — “The demand for cameras has fallen by 85% in the last decade”?

(i) The demand now is 85% of the demand a decade ago.

(ii) The demand a decade ago was 85% of the demand now.

(iii) The demand now is 15% of the demand a decade ago.

(iv) The demand a decade ago was 15% of the demand now.

(v) The demand a decade ago was 185% of the demand now.

(vi) The demand now is 185% of the demand a decade ago.

Figure It Out · page 22 · Question 1

Printed page 22

Bank of Yahapur offers an interest of 10% p.a. Compare how much one gets if they deposit ₹20,000 for a period of 2 years with compounding and without compounding annually.

Figure It Out · page 23 · Question 2

Printed page 23

Bank of Wahapur offers an interest of 5% p.a. Compare how much one gets if one deposits ₹20,000 for a period of 4 years with compounding and without compounding annually.

Figure It Out · page 23 · Question 3

Printed page 23

Do you observe anything interesting in the solutions of the two questions above? Share and discuss.

Figure It Out · page 24 · Question 4

Printed page 24

Jasmine invests amount ‘p’ for 4 years at an interest of 6% p.a. Which of the following expression(s) describe the total amount she will get after 4 years when compounding is not done?

(i) p × 6 × 4

(ii) p × 0.6 × 4

(iii) p × 0.6100 × 4

(iv) p × 0.06100 × 4

(v) p × 1.6 × 4

(vi) p × 1.06 × 4

(vii) p + (p × 0.06 × 4)

Figure It Out · page 24 · Question 5

Printed page 24

The post office offers an interest of 7% p.a. How much interest would one get if one invests ₹50,000 for 3 years without compounding? How much more would one get if it was compounded?

Figure It Out · page 24 · Question 6

Printed page 24

Giridhar borrows a loan of ₹12,500 at 12% per annum for 3 years without compounding and Raghava borrows the same amount for the same time period at 10% per annum, compounded annually. Who pays more interest and by how much?

Figure It Out · page 24 · Question 7

Printed page 24

Consider an amount ₹1000. If this grows at 10% p.a., how long will it take to double when compounding is done vs. when compounding is not done? Is compounding an example of exponential growth and not-compounding an example of linear growth?

Figure It Out · page 24 · Question 8

Printed page 24

The population of a city is rising by about 3% every year. If the current population is 1.5 crore, what is the expected population after 3 years?

Figure It Out · page 24 · Question 9

Printed page 24

In a laboratory, the number of bacteria in a certain experiment increases at the rate of 2.5% per hour. Find the number of bacteria at the end of 2 hours if the initial count is 5,06,000.

Figure It Out · page 28 · Question 1

Printed page 28

The population of Bengaluru in 2025 is about 250% of its population in 2000. If the population in 2000 was 50 lakhs, what is the population in 2025?

Figure It Out · page 28 · Question 2

Printed page 28

The population of the world in 2025 is about 8.2 billion. The populations of some countries in 2025 are given. Match them with their approximate percentage share of the worldwide population. [Hint: Writing these numbers in the standard form and estimating can help].

Germany: 83 million; India: 1.46 billion; Bangladesh: 175 million; USA: 347 million.

Options: 13%, 8%, 18%, 10%, 1%, 35%, 2%, 2%, 0.1%.

Figure It Out · page 28 · Question 3

Printed page 28

The price of a mobile phone is ₹8,250. A GST of 18% is added to the price. Which of the following gives the final price of the phone including the GST?

(i) 8250 + 18

(ii) 8250 + 1800

(iii) 8250 + 18100

(iv) 8250 × 18

(v) 8250 × 1.18

(vi) 8250 + 8250 × 0.18

(vii) 1.8 × 8250

Figure It Out · page 28 · Question 4

Printed page 28

The monthly percentage change in population (compared to the previous month) of mice in a lab is given: Month 1 change was +5%, Month 2 change was –2%, and Month 3 change was –3%. Which of the following statement(s) are true? The initial population is p.

(i) The population after three months was p × 0.05 × 0.02 × 0.03.

(ii) The population after three months was p × 1.05 × 0.98 × 0.97.

(iii) The population after three months was p + 0.05 – 0.02 – 0.03.

(iv) The population after three months was p.

(v) The population after three months was more than p.

(vi) The population after three months was less than p.

Figure It Out · page 28 · Question 5

Printed page 28

A shopkeeper initially set the price of a product with a 35% profit margin. Due to poor sales, he decided to offer a 30% discount on the selling price. Will he make a profit or a loss? Give reasons for your answer.

Figure It Out · page 28 · Question 6

Printed page 28

What percentage of area is occupied by the region marked ‘E’ in the figure?

ABCDE
Source grid arrangement · each interval is one unit.

Figure It Out · page 29 · Question 7

Printed page 29

What is 5% of 40? What is 40% of 5? What is 25% of 12? What is 12% of 25? What is 15% of 60? What is 60% of 15? What do you notice? Can you make a general statement and justify it using algebra, comparing x% of y and y% of x?

Figure It Out · page 29 · Question 8

Printed page 29

A school is organising an excursion for its students. 40% of them are Grade 8 students and the rest are Grade 9 students. Among these Grade 8 students, 60% are girls. [ Hint: Drawing a rough diagram can help].

(i) What percentage of the students going to the excursion are Grade 8 girls?

(ii) If the total number of students going to the excursion is 160, how many of them are Grade 8 girls?

Figure It Out · page 29 · Question 9

Printed page 29

A shopkeeper sells pencils at a price such that the selling price of 3 pencils is equal to the cost of 5 pencils. Does he make a profit or a loss? What is his profit or loss percentage?

Figure It Out · page 29 · Question 10

Printed page 29

The bus fares were increased by 3% last year and by 4% this year. What is the overall percentage price increase in the last 2 years?

Figure It Out · page 29 · Question 11

Printed page 29

If the length of a rectangle is increased by 10% and the area is unchanged, by what percentage (exactly) does the breadth decrease by?

Figure It Out · page 29 · Question 12

Printed page 29

The percentage of ingredients in a 65 g chips packet is shown in the picture. Find out the weight each ingredient makes up in this packet.

65 g packet: potato 70%, vegetable oil 24%, salt 3%, spices 3%; the source labels these approximate values.
Page 29 · Question 12 · NCERT, supplied chapter source. Numerical and figure qualifications are stated in the solution.

Figure It Out · page 29 · Question 13

Printed page 29

Three shops sell the same items at the same price. The shops offer deals as follows: Shop A: “Buy 1 and get 1 free” Shop B: “Buy 2 and get 1 free” Shop C: “Buy 3 and get 1 free” Answer the following:

(i) If the price of one item is ₹100, what is the effective price per item in each shop? Arrange the shops from cheapest to costliest.

(ii) For each shop, calculate the percentage discount on the items. [Hint: Compare the free items to the total items you receive.]

(iii) Suppose you need 4 items. Which shop would you choose? Why?

Figure It Out · page 30 · Question 14

Printed page 30

In a room of 100 people, 99% are left-handed. How many left-handed people have to leave the room to bring that percentage down to 98%?

Figure It Out · page 30 · Question 15

Printed page 30

Look at the following graph.

Based on the graph, which of the following statement(s) are valid?

(i) People in their twenties are the most computer-literate among all age groups.

(ii) Women lag behind in the ability to use computers across age groups.

(iii) There are more people in their twenties than teenagers.

(iv) More than a quarter of people in their thirties can use computers.

(v) Less than 1 in 10 aged 60 and above can use computers.

(vi) Half of the people in their twenties can use computers.

Computer ability by age and gender, source chart (2023)
Age groupFemaleMale
Children4%about 5%
Teenage24%29%
Twenties26%37%
Thirties14%25%
Forties7%14%
Fifties4%9%
Seniors2%4%

The children’s male bar is read approximately from its endpoint; the other values are printed labels. Source: the textbook chart citing NSS Round 79.
